惠泽染机公司发明公开了一种染色机用堵布报警装置，包括：染色机筒体，所述染色机筒体内设置有提布轮，所述染色机筒体内设置有检测机架，所述检测支架的上端设置有报警触头传感器，左端设置有速度传感器，所述报警触头传感器和速度传感器与控制柜相连接。通过上述方式，本发明染色机用堵布报警装置，能够实时检测提布轮中织物状态，报警及时，安全可靠。

  The The invention discloses dyeing machine with stifled cloth alarm system, include: the dyeing machine barrel, be provided with in the said dyeing machine barrel and carry the cloth wheel, be provided with the measuring frame in the said dyeing machine barrel, the upper end of said measuring support bracket is provided with alarm contact sensor, the left end is provided with the speedtransmitter, said alarm contact sensor and speedtransmitter are connected with the switch board mutually.
Through above-mentioned mode, invention dyeing machine is with stifled cloth alarm system, can the real-time detection carries fabric state in the cloth wheel, and the warning is timely, and is safe and reliable.

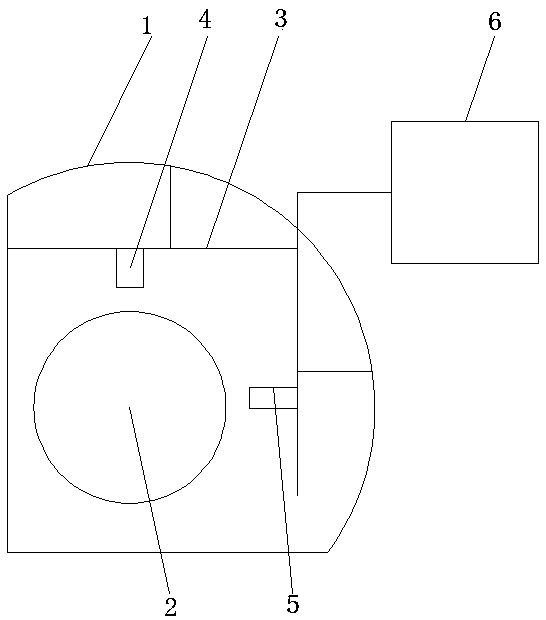

1.一种染色机用堵布报警装置，其特征在于，包括：染色机筒体，所述染色机筒体内设置有提布轮，所述染色机筒体内设置有检测机架，所述检测支架的上端设置有报警触头传感器，左端设置有速度传感器，所述报警触头传感器和速度传感器与控制柜相连接。
2.根据权利要求1所述的染色机用堵布报警装置，其特征在于，所述检测机架呈直角形，所述检测机架吊设在染色机筒体上，所述检测机架一边位于提布轮上端，另一边位于提布轮的右端。
3.根据权利要求1所述的染色机用堵布报警装置，其特征在于，所述控制柜上设置有液晶显示装置和多个报警指示灯，所述液晶显示装置分别与报警触头传感器、速度传感器和多个报警指示灯相连接。
4.根据权利要求1所述的染色机用堵布报警装置，其特征在于，所述报警触头传感器和速度传感器均为非接触式传感器。
5.根据权利要求1所述的染色机用堵布报警装置，其特征在于，所述报警指示灯的数量为3个。
