染色机用提布轮发明介绍

发布时间:2020-02-03 18:01:00

惠泽染色机公司设计的一种染色机用提布轮,包括:轮体,所述轮体上设置有多个导布凸块,所述轮体的左右两端设置有定位块,所述导布凸块设置于定位块的内侧,并且与定位块相接触,所述导布凸块的横截面呈相外凸起的圆弧形,所述定位块内部具有定位槽,所述定位槽的高度与导布凸块两端的高度相等。通过上述方式,本实用新型染色机用提布轮,能够减少织物的张力,提高生产效率,结构简单,使用方便。

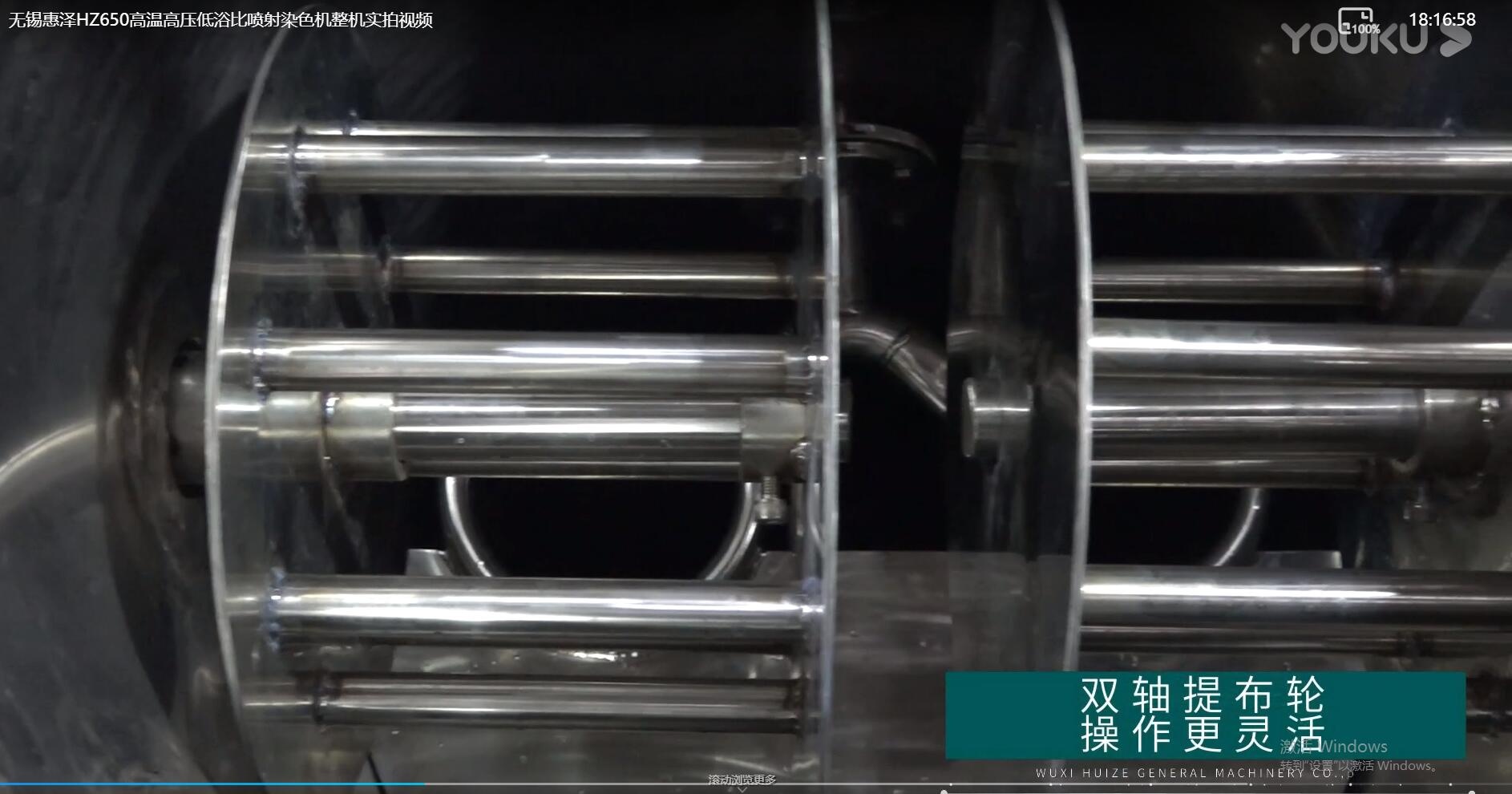

染色机用提布轮1

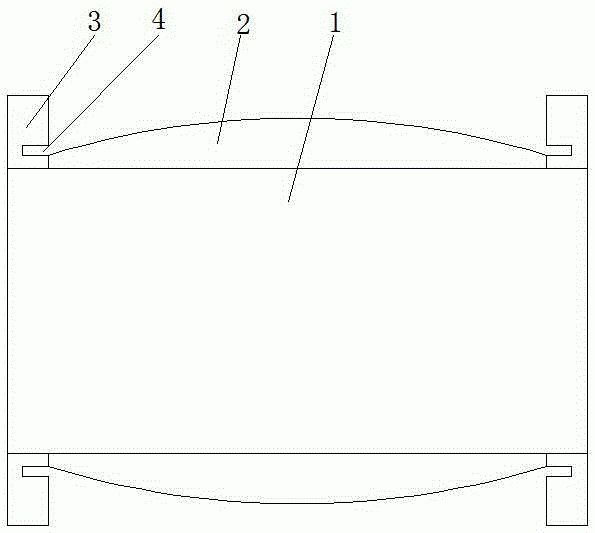

染色机用提布轮2

a cloth lifting wheel for dyeing machine, include: the wheel body, be provided with a plurality of cloth lugs of leading on the wheel body, both ends are provided with the locating piece about the wheel body, it sets up in the inboard of locating piece to lead the cloth lug to contact with the locating piece, lead the transversal outer bellied arc mutually of personally submitting of cloth lug, locating piece inside has the constant head tank, the height of constant head tank with lead highly equalling of cloth lug both ends. In this way, the utility model discloses cloth lifting wheel for dyeing machine can reduce the tension of fabric, improves production efficiency, simple structure, convenient to use.

来源声明:以上内容部分(包含图片、文字)来源于网络,如有侵权,请及时与本站联系(+86-15190290101)。

如没特殊注明,文章均为惠泽染机公司原创
