一种用于L型双布槽V形低浴比的染色机

发布时间：2020-02-03 18:23:00

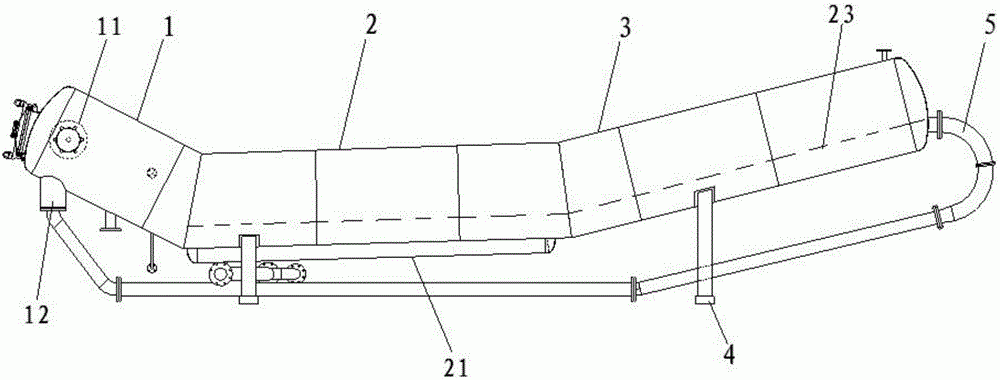

惠泽染色机发明的一种用于L型双布槽V形低浴比的染色机，包括头部机身(1)、中部机身(2)和尾部机身(3)，头部机身(1)、中部机身(2)和尾部机身(3)依次通过全焊透自动焊接成染色机本体；所述头部机身(1)位置设有导布轮(11)和喷嘴(12)；所述中部机身(2)至所述尾部机身(3)区域内铺设有双布槽(23)，尾部机身(3)的一端设有导布管(7)；导布管(7)的一端连接所述喷嘴(8)，另一端连接到所述尾部机身(3)的双布槽(23)；头部机身(1)和尾部机身(3)均倾斜向上设置，并与中部机身(2)形成V形结构。本发明的机身结构设计合理，V形结构大大降低浴比，节省了储水面积。

L型双布槽V形低浴比的染色机

a low-bath-ratio V-shaped dyeing machine for L-type double cloth grooves. The low-bath-ratio V-shaped dyeing machine comprises a head machine body (1), a middle machine body (2) and a tail machine body (3) which are automatically welded into a dyeing machine body sequentially through full penetration welding. The head machine body (1) is provided with a cloth guide wheel (11) and a nozzle (12), the double cloth grooves (23) are laid in an area from the middle machine body (2) to the tail machine body (3), and a cloth guide pipe (7) is arranged at one end of the tail machine body (3). One end of the cloth guide pipe (7) is connected with the nozzle (8) while the other end thereof is connected to the double cloth grooves (23). The head machine body (1) and the tail machine body (3) are arranged upward obliquely so as to form a V-shaped structure with the middle machine body (2). The low-bath-ratio V-shaped dyeing machine for the L-type double cloth grooves is reasonable in structural design, and the bath ratio is greatly decreased through the V-shaped structure, so that the water storage area is saved.
